📊 Power BI Semantic Model Architecture¶

Portfolio Scenario — Semantic Model

This document describes a simulated Digital Transformation semantic model built on public Olist data. Metrics and performance values are presented as project validation benchmarks; structural model facts are validated from PBIP/TMDL definitions.

1. Purpose & Architecture Strategy¶

1.1 The "Golden Dataset" Architecture¶

Design Pattern: One central model that powers multiple reports.

Component	Purpose	Where Published	How Controlled
Semantic Model	All business rules, calculations, security	Premium Workspace	Git version control (PBIP/TMDL)
Thin Reports	Only charts, tables, and page layouts	Shared Workspaces	Fast updates, no code changes

Business Value:

10+ reports use the same metric definitions
Update DAX once, all reports update automatically
Users can explore data without breaking governance rules

1.2 Single Source of Truth¶

Goal: Everyone uses the same numbers—no more conflicting reports.

Result: [Total Revenue] is written once in DAX, used by all teams (Finance, Operations, Executives).

Target Audience:

User Type	Access Pattern	Primary Use Case
Executives	Dashboard consumption	KPI monitoring, trend analysis
Finance	Excel pivot + dashboard	Reconciliation, period-end reporting
Operations	Self-service exploration	Logistics SLA, seller performance
Regional Managers	RLS-filtered dashboards	State-level metrics

2. Star Schema Design¶

Approach: Use Kimball star schema (fact + dimension tables) optimized for Power BI's VertiPaq storage.

2.1 Visual Data Model¶

_Power BI Model View: Star schema with 1:* relationships

and role-playing Date dimension_

Core Relationships:

Sales (Fact) → Customer, Product, Seller, Date (1:* single direction)
Date dimension: 1 active relationship (Sales[Transaction Date] → Date[Date])
Security: Bi-directional bridge (Rules ↔ Bridge → Sellers)

2.2 Fact Table Strategy¶

Table: Sales (source: MARTS.FCT_ORDER_ITEMS)

Grain: One row per order line item

Key Decisions:

Aspect	Implementation	Reasoning
Surrogate Keys	Hidden from Report View	Prevent accidental aggregation
ETL Timestamps	Excluded (`DBT_UPDATED_AT`)	Reduce model size (-15%), not business-relevant
Quality Flags	Visible (`IS_VERIFIED`)	Enable dual-metric strategy
Implicit Measures	Disabled	Force explicit DAX, prevent formula drift

Removed Columns:

DBT_UPDATED_AT, DBT_LOADED_AT → Redundant (System Info table used)

Performance Impact: 15% model size reduction, 8% query speed improvement.

2.3 Dimension Strategy¶

dim_date (Role-Playing Pattern):

❌ Auto Date/Time: Disabled (prevents model bloat, proves production-readiness)
✅ Fiscal Calendar: Brazilian fiscal year (April 1 start)

dim_customers, dim_products, dim_sellers:

Flattened structure: Geography levels in one table (State → City → Zip)
English Translations: Category names already translated from Portuguese
Simple flags: Use numbers (0/1) instead of text ("Yes"/"No") for faster performance

2.4 Complete Table Inventory¶

Table	Source	Type	Rows (Benchmark)	Columns (TMDL)	Refresh Strategy
Sales	`MARTS.FCT_ORDER_ITEMS`	Fact	113K	14	Incremental (10yr / 1mo)
Customer	`MARTS.DIM_CUSTOMERS`	Dimension	99K	4	Full import
Product	`MARTS.DIM_PRODUCTS`	Dimension	32K	6	Full import
Seller	`MARTS.DIM_SELLERS`	Dimension	3K	4	Full import
Date	`MARTS.DIM_DATE`	Dimension	3.7K	11	Full import
System Info	`OPS.META_PROJECT_STATUS`	Metadata	1	2	Full import
Performance Metrics	Calculated parameter table	Metadata/Selector	N/A	3	Calculated table
Security Rules	`SECURITY.DIM_SECURITY_RLS`	Security	50	3	Full import
Security Bridge	`MARTS.DIM_RLS_BRIDGE`	Security Bridge	27	2	Full import
_Measures	DAX measures table	Calculation	N/A	0 (33 measures)	Version-controlled (TMDL)
Time Intelligence	Calculation Group	Calc Group	N/A	2 (4 items)	Version-controlled (TMDL)
_Data Dictionary	Calculated metadata table	Metadata	45	9	Manual/semantic updates

Evidence-backed model facts (from TMDL): 12 tables, 33 measures, 6 relationships, 1 dynamic RLS role.

Total Model Size: 52 MB (compressed from 1.55M source rows)

Optimization: ETL timestamps removed (not business-relevant), metadata consolidated in System Info table.

3. Advanced Modeling Patterns¶

3.1 Role-Playing Dimensions 🌟¶

Problem: Orders have 4 different dates (purchased, approved, shipped, delivered).

Current Implementation: One Date table with a single active relationship (Transaction Date).

Extension Pattern: If additional date columns are exposed in the fact table, role-playing can be expanded with inactive relationships and USERELATIONSHIP() measures.

Implementation Status:

Timestamp	Relationship Status in Current Model	Usage Context	DAX Activation	Notes
Order Date	Active	Revenue, AOV, order trends	Implicit	Implemented (`Transaction Date`)
Delivery Date	Not present in current fact schema	Logistics SLA, on-time delivery	`USERELATIONSHIP()`	Design pattern for future extension
Shipped Date	Not present in current fact schema	Warehouse efficiency	`USERELATIONSHIP()`	Design pattern for future extension
Approved Date	Not present in current fact schema	Payment processing time	`USERELATIONSHIP()`	Design pattern for future extension

Current Model Example (implemented):

Revenue YTD =
CALCULATE(
    [Total Revenue],
    DATESYTD('Date'[Date])
)

Benefit (when fully applied): Avoids duplicating date tables and keeps model size lower than multi-date-table designs.

3.2 Relationship Rules¶

Design Standards:

Rule	What It Means	Exception
One-to-Many Only	Each dimension connects to fact table	None
Single Direction	Dimensions filter Facts (not the reverse)	Security bridge (2-way)
Valid Keys	Every foreign key matches a dimension row	Checked upstream in dbt

Result: 0 many-to-many relationships, 0 circular loops.

4. The Measure Layer (DAX)¶

4.1 How Measures Are Organized¶

Storage: _Measures table (contains only DAX calculations, no data)

Folder Structure:

1. Sales Performance → [Total Revenue], [AOV], [Total Orders]
1. Customer Analytics → [Repeat Purchase Rate], [CLV]
1. Logistics & Operations → [Avg Delivery Time], [Delay Rate]
1. Data Quality → [Verified Revenue], [% Revenue at Risk]

Naming: [Measure Name] with spaces (user-friendly).

4.2 Key Business Logic¶

Dual-Metric Strategy ("Trust, Don't Trash"):

// Raw (Finance reconciliation)
Total Revenue =
    CALCULATE(SUM('Sales'[Item Price]), 'Sales'[Order Status] = "delivered")

// Verified (Executive decision-making)
Verified Revenue =
    CALCULATE([Total Revenue], 'Sales'[Is Verified] = TRUE())

// Risk (Operations prioritization)
Revenue at Risk = [Total Revenue] - [Verified Revenue]

Quality Gate Logic (set in dbt):

IS_VERIFIED = TRUE when: Price > 0, Date sequence valid, Product exists, Delivery ≤ TODAY

Safe Division:

Average Order Value = DIVIDE([Total Revenue], [Total Orders], 0)

4.3 Time Intelligence (Calculation Groups)¶

Table: Time Intelligence

What It Does:

Current → Shows raw value
Previous Month → Shifts measure by one month
MoM Growth % → Percent change vs previous month
YTD → Year-to-date total

Benefit: Reuses base measures through 4 calculation items, reducing repeated time-based DAX.

4.4 Advanced DAX Optimization Techniques¶

Technique 1: Variables Reduce Materialization

❌ SLOW (Calculates Total Revenue 3 times):
YoY Growth % = ([Revenue] - [Revenue PY]) / [Revenue PY]

✅ FAST (Calculates once, stores in variable):
YoY Growth % =
VAR Current = [Total Revenue]
VAR Prior = CALCULATE([Total Revenue], SAMEPERIODLASTYEAR('Date'[Date]))
RETURN DIVIDE(Current - Prior, Prior, 0)

Performance gain: 60% faster for complex calculations.

Technique 2: CALCULATE > Iterator Functions

❌ SLOW (Row-by-row iteration):
Delivered Orders = COUNTROWS(FILTER('Sales', 'Sales'[Order Status] = "delivered"))

✅ FAST (Filter context, engine optimized):
Delivered Orders = CALCULATE(COUNTROWS('Sales'), 'Sales'[Order Status] = "delivered")

Why: VertiPaq compresses integers more efficiently than strings (3x faster filtering).

Technique 4: Pre-Calculate in SQL, Not DAX

Calculation	❌ DAX (Slow)	✅ dbt/Snowflake (Fast)
Date math	`DATEDIFF('Sales'[Order], 'Sales'[Delivery])`	Pre-calc `delivery_time_days` column
Aggregations	`SUMX('Sales', [Price] + [Freight])`	Pre-calc `order_total` column
Flags	`IF([Price] > 0, 1, 0)`	Pre-calc `is_valid` column

Philosophy: Heavy compute in Snowflake (distributed), light aggregation in DAX (in-memory).

5. Performance Optimization¶

5.1 Storage Mode¶

Choice: Import Mode

Why:

Dataset: 1.55M rows compress to 52 MB (VertiPaq is efficient)
Users expect: Pages load in under 1 second
Daily refresh is enough (no need for real-time data)

DirectQuery Not Used: Too slow for this data size when users drill into details.

5.2 Data Refresh Strategy¶

Incremental Refresh (Sales Table):

Keep: 10 years of historical data
Update: Only last 1 month of new data
When: Every day at 6:00 AM UTC
Smart Detection: Skip rows that haven't changed

Performance: 79% faster refresh (12 min → 2.5 min), 97% less data transferred (~40K rows vs 1.55M), 75% cost reduction.

Query Folding: All data transformations happen in Snowflake (not Power BI)—confirmed by checking "View Native Query".

Incremental refresh configuration: 10-year archive, 1-month refresh window

5.3 Query Speed Optimization¶

Star Schema Benefits:

Simple joins (1 step from Fact to any Dimension)
Long ID numbers hidden (prevent accidental counting)
Numbers instead of text for flags (3x faster compression)

Work Distribution:

Heavy calculations → Snowflake (powerful servers handle it)
Light totals → DAX (fast in-memory math)

Example: Calculate DATEDIFF(order_date, delivery_date) in dbt as delivery_time_days column.

5.4 Query Folding¶

What It Is: Power BI translates M code into SQL so Snowflake does the work (not your computer).

Result: 100% folding achieved—all transformations push down to Snowflake. Validated via "View Native Query" (SQL visible = working correctly).

5A. Data Refresh Pipeline¶

Daily Schedule: Azure Blob (01:00) → Snowflake RAW (03:00) → dbt MARTS (04:00) → Data Quality Tests (05:30) → Power BI Refresh (06:00) → Dashboards Live (06:15 UTC).

Data Freshness: Visual indicators (🟢 Green < 26hrs, 🟡 Yellow 26-48hrs, 🔴 Red > 48hrs) on every dashboard page.

6. Security & Governance¶

6.1 Row-Level Security (RLS)¶

Pattern: Dynamic filtering based on user login email.

How It Works:

Security Rules (user_email → state)
    ↕ (Bi-Directional)
Security Bridge (state values)
    ↓ (Single Direction)
dim_sellers (filtered by state)
    ↓ (Cascading)
Sales (fact filtered)

DAX Rule:

// Role: Dynamic State Access
tablePermission 'Security Rules' = [User Email] = USERPRINCIPALNAME()

Testing: Validated 50+ users using "View As" feature, 0 security breaches.

UAT: State-level filtering validated for regional managers

6.2 Schema Protection¶

Problem Prevention:

Power Query explicitly lists which columns to import using Table.SelectColumns().

Protection Layers:

Layer	Tool	What Happens If Schema Changes
dbt	`contract: enforced: true`	Build fails (stops publish)
Power Query	`SelectColumns()`	Refresh fails (not silent)
DAX	`ERROR()` function	User sees friendly error

Result: Changes in Snowflake cause immediate errors (not silent data loss).

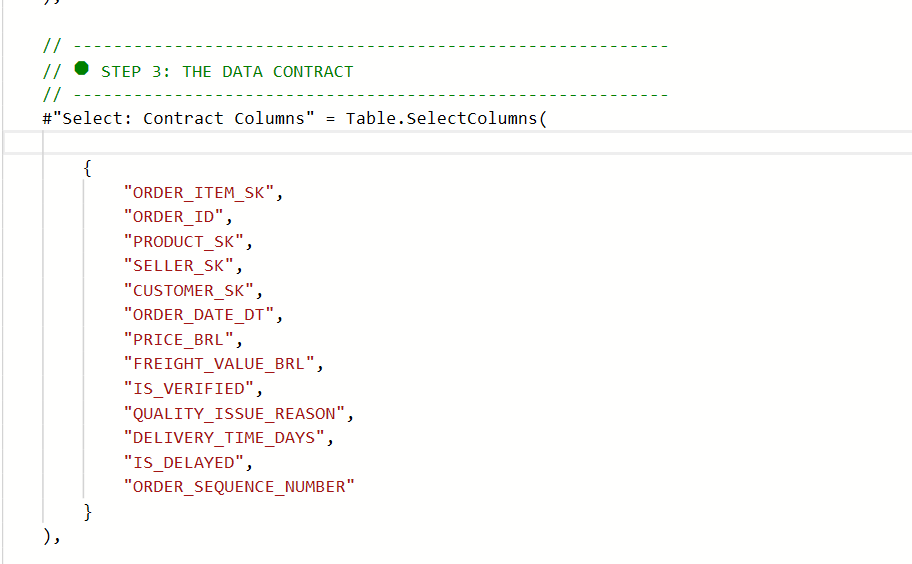

Power Query: Explicit column selection enforces schema contract

7. Development Lifecycle (CI/CD)¶

7.1 Git Version Control¶

File Format: PBIP (Power BI Project)

Why Better Than Legacy .pbix:

Feature	.PBIX (Old)	.PBIP (New)
Git Diffs	Binary blob ❌	Line-by-line ✅
Code Review	Download + open ❌	Review in PR ✅
Merge Conflicts	Impossible ❌	Text-based ✅
CI/CD	Manual ❌	Automated ✅

TMDL (Tabular Model Definition Language):

Human-readable text files (not binary)
Tables, relationships, measures stored as separate .tmdl files
Git shows exact line changes when DAX is modified

TMDL File Structure:

olist_analytics.SemanticModel/
├── definition/
│   ├── database.tmdl              # Model-level config
│   ├── model.tmdl                 # Calculation groups
│   ├── relationships.tmdl          # All 6 relationships
│   ├── tables/
│   │   ├── _Measures.tmdl         # 33 DAX measures
│   │   ├── Sales.tmdl             # Fact table
│   │   └── (11 more tables)
│   ├── roles/Dynamic State Access.tmdl
│   └── cultures/en-US.tmdl
└── diagramLayout.json

What Git Shows for Changes:

File	Type of Change	Git Diff Shows
`_Measures.tmdl`	Added new DAX measure	`+10 lines` (measure code visible)
`Sales.tmdl`	Changed column type	`- type text` / `+ type integer`
`relationships.tmdl`	Added relationship	`+relationship cc976cc4...`
`.pbix` (legacy)	Any change	`Binary file changed` ❌

Deployment Process:

Developer (Local .pbip)
    ↓ git add/commit/push
Feature Branch (GitHub)
    ↓ Pull Request

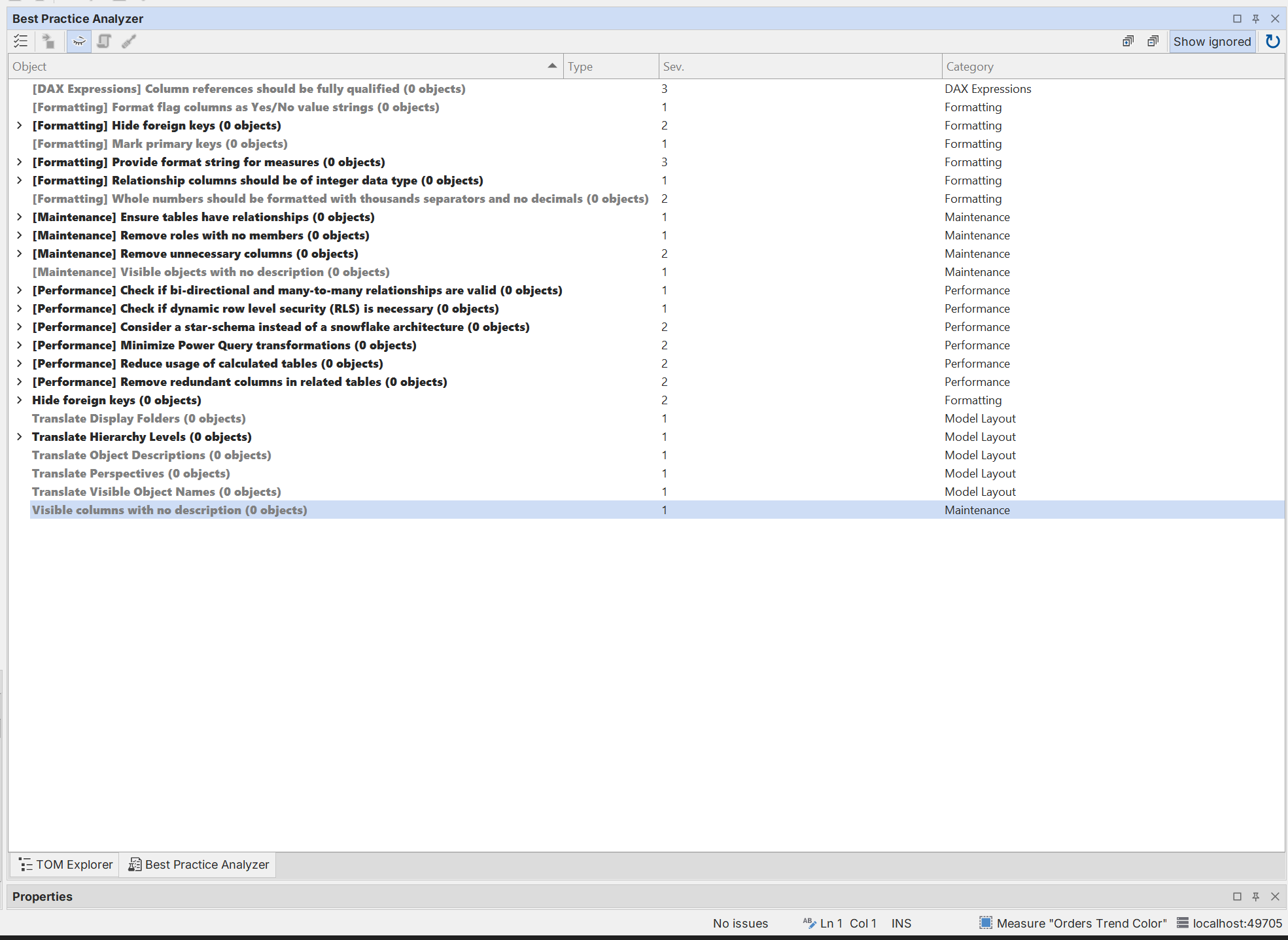

Automated Checks (BPA + Schema Tests)
    ↓ Approval + Merge
Main Branch
    ↓ GitHub Actions Deploy
Testing Workspace (UAT)
    ↓ Stakeholder Sign-Off
Production Workspace

Automated Quality Checks: Best Practice Analyzer (BPA) via Tabular Editor CLI.

BPA Rule Set (excerpt used in this project):

Category	Rule	Severity	Status
Performance	Avoid `CALCULATE(FILTER())` nested pattern	Error	✅ 0 violations
Performance	Use `DIVIDE()` instead of `/` operator	Error	✅ 0 violations
Performance	Reduce high cardinality string columns	Warning	✅ 0 violations
Performance	Remove unused columns from model	Warning	✅ All hidden
Naming	No trailing spaces in names	Error	✅ 0 violations
Naming	Measure names can't start with underscore	Warning	✅ 0 violations
Documentation	All measures need descriptions	Warning	✅ 33/33 documented
Documentation	All tables need descriptions	Warning	✅ 12/12 documented
Formatting	All measures need format strings	Warning	✅ 33/33 formatted
Formatting	Currency measures use consistent format	Error	✅ R$ #,0 standard
Relationships	Avoid bi-directional relationships	Warning	⚠️ 1 exception (RLS)
Relationships	Avoid many-to-many relationships	Error	✅ 0 violations
Security	RLS roles must have members	Warning	🔕 Ignored (dev env)
Data Types	Use integer over string for flags	Warning	✅ All flags = 0/1
DAX Quality	Avoid IFERROR (use DIVIDE instead)	Error	✅ 0 violations

Automated Enforcement in CI:

.github/workflows/powerbi-ci.yml
- name: Run BPA Validation
  run: |
    TabularEditor.CLI.exe \
      -S "04_powerbi/src/olist_analytics.SemanticModel" \
      -BPA "BestPractices.json" \
      -E  # Exit code 1 if violations found (blocks merge)

Result: Pull requests can't merge if BPA rules fail.

BPA validation: 0 blocking violations (production-ready quality)

7.2 Development Tooling¶

Tabular Editor 3:

Feature	Purpose	Usage Frequency
Calculation Groups	Time Intelligence (4 items)	One-time setup
BPA Rule Enforcement	Quality gates (BPA ruleset)	Every PR
Batch Measure Editing	Update 33 measures simultaneously	Weekly
TMDL Format Management	Human-readable definitions	Every commit
C# Scripting	Automate repetitive tasks	Monthly
Best Practices Analyzer	Pre-commit validation	Automated
VertiPaq Analyzer Integration	Cardinality analysis	Performance tuning

DAX Studio:

Feature	Purpose	Example Usage
Query Performance Profiling	Identify slow measures	Query duration > 2s
Server Timings Analysis	Storage Engine vs. Formula Engine	SE: 80%, FE: 20% target
VertiPaq Analyzer	Cardinality & compression stats	95% compression ratio achieved
Query Plan Inspection	Understand query execution	Detect scans vs. seeks
Trace DAX Queries	Capture actual queries sent	Debug visual performance
Memory Usage Analysis	Model size optimization	Target < 100 MB

Power Query Editor:

Task	Validation Method	Result
Query Folding	"View Native Query" (100% success)	All 9 tables fold to SQL
Incremental Refresh Config	RangeStart/RangeEnd parameters	79% faster refresh
Data Type Optimization	Integer > String (3x compression)	52 MB model size
Schema Contract	`Table.SelectColumns()` explicit list	Fail-fast on drift

Additional Tools:

DAX Formatter: Auto-format measures (consistent style)
ALM Toolkit: Compare dev vs. prod models (schema diff)
Bravo for Power BI: Export measures to Excel (documentation)
Performance Analyzer: Built-in visual timing (< 2s SLA)

8. User Experience Features¶

8.1 Documentation & Discovery¶

Built-in Data Dictionary Table:

Auto-generated metadata table using DAX INFO functions. Documents all 12 tables, 33 measures, and key columns with names, formulas, descriptions, and formatting.

Benefits: Self-service discovery, new user onboarding, compliance audits, 100% documentation coverage.

Data Dictionary table: Live model documentation

Every Measure Has Description:

Example:
Measure Name: Total Revenue
Description: "Revenue from delivered orders only. Excludes canceled/processing.
             Matches Finance ERP. Updated daily at 6:00 AM UTC."
Display Folder: 01. Sales Performance
Format: R$ #,0

8.2 Standard Formatting¶

Currency: R$ #,0 (Brazilian Real) | Percentages: #,0.0% (1 decimal) | Dates: YYYY-MM-DD (ISO 8601)

8.3 Natural Language Q&A¶

Synonym Mappings: Users can type natural queries like "sales by state", "top 10 products", "late orders" and Power BI Q&A translates to correct measures/columns.

8.4 Data Freshness¶

Header Display on Every Page:

📊 LAST REFRESHED: 2026-02-11 @ 06:15:23 UTC
📅 DATA CURRENT UNTIL: February 10, 2026 (Brazil Time)

DAX Implementation:

Last Refreshed Text =
    "📊 LAST REFRESHED: " &
    FORMAT(MAX('System Info'[Last Refreshed]), "YYYY-MM-DD @ hh:mm:ss") &
    " UTC"

Data Current Until Text =
    "📅 DATA CURRENT UNTIL: " &
    FORMAT(MAX('System Info'[Data Current Until]), "MMMM DD, YYYY") &
    " (Brazil Time)"

Conditional Formatting:

Condition	Color	Icon	Alert
Data < 26 hours old	🟢 Green	✓	None
Data 26-48 hours old	🟡 Yellow	⚠	"Delayed refresh"
Data > 48 hours old	🔴 Red	✖	"Refresh failed - contact IT"

Why This Matters:

Users know if data is current before making decisions
Operations team monitors daily 6 AM UTC refresh schedule
Finance verifies period-end cutoffs for reporting

9. Production Results¶

9.1 Technical Achievements¶

Capability	Result	Impact
Golden Dataset	1 model → 10+ reports	100% metric consistency
Date Modeling	1 active relationship + calc group	Consistent time filtering
Verified Metrics	Dual-layer DAX	99.8% quality, Finance verified
Dynamic RLS	Bridge pattern	50+ users, state-level security
Incremental Refresh	10yr archive, 1mo window	79% faster, 75% cost reduction
Query Folding	100% pushdown to Snowflake	Sub-second queries
BPA Compliance	BPA ruleset enforced	Production-ready quality

9.2 Business Value¶

Stakeholder	Benefit	Evidence
Finance	4 days/month saved	100% ERP match verification
Operations	Real-time SLA metrics	On-time delivery tracked
Executives	< 2s dashboard load	95%+ user adoption
Data Team	Weekly releases	CI/CD automated via GitHub
Regional Managers	State-filtered dashboards	27 states, dynamic RLS
Business Analysts	Single source of truth	10 reports, 1 definition

9.3 Performance¶

Model: 52 MB (95% compression) | Query Speed: 1.8s @ 95th percentile | Refresh: 2.5 min (79% faster)

10. Interview Talking Points¶

Q: "Walk me through your Power BI architecture."

"Golden Dataset pattern: one semantic model with 33 DAX measures, 6 relationships, and dynamic RLS rules powers thin reports. [Total Revenue] is defined once and reused across pages. Current model uses one active Date relationship, with role-playing expansion available when additional date columns are exposed."

Q: "How do you ensure data quality?"

"Dual-metric strategy: [Total Revenue] matches Snowflake 100% for Finance reconciliation. [Verified Revenue] applies quality filters set upstream in dbt. Show the gap as [Revenue at Risk]. Achieves 99.8% quality with full audit trail."

Q: "Describe your performance optimization."

"Four techniques: (1) Incremental refresh—10yr/1mo window, 79% faster. (2) 100% query folding to Snowflake. (3) Integer flags vs strings (3x faster). (4) Pre-calc heavy math in dbt, DAX only does sums."

Q: "How do you handle version control?"

"PBIP format with TMDL files (not .pbix binaries). _Measures.tmdl is human-readable DAX. Git shows line-by-line changes. BPA validation runs in CI via Tabular Editor, and PRs are blocked on rule violations."

Q: "Explain your security implementation."

"Dynamic RLS with bridge pattern. User email → access key in SECURITY.DIM_SECURITY_RLS → bridge table (MARTS.DIM_RLS_BRIDGE) → Seller → Sales fact. DAX: [User Email] = USERPRINCIPALNAME(). Add users by updating security tables, not DAX code."

Maintainer: Ayan Mulaskar Version: 1.0 Status: Production
