🚀 End-to-End Performance & Cost Optimization Strategy¶

Portfolio Scenario — Evidence Scope

This file documents implemented optimization controls and benchmark evidence for a portfolio deployment. Benchmark numbers are tied to screenshots and captured runs in this repository.

Single Source of Truth

Performance implementation details live in one place and are referenced here:

Architecture and component boundaries: 01_architecture.md
MARTS contracts and grains: 02_data_dictionary.md
Semantic model implementation and refresh details: 04_semantic_model.md

1️⃣ Objective of This Document¶

Why performance matters in analytics systems:

Fast dashboards protect user trust and increase adoption.
Predictable refresh cycles keep KPI decisions timely.
Compute guardrails prevent optimization gains from being erased by cost drift.

Performance vs usability trade-offs:

Import mode gives low-latency visuals but uses scheduled freshness.
Incremental strategies reduce refresh cost but require partition governance.
Strong CI gates improve reliability but add feedback-loop overhead.

Target benchmarks used in this project:

Dashboard load time: < 2 seconds
Visual render time: < 1200ms
Power BI refresh time: < 10 minutes
Snowflake warehouse auto-suspend: <= 60 seconds for ingestion/transform

🟦 SECTION A — Snowflake Optimization¶

A1. Warehouse sizing and suspend policy¶

Decision: X-SMALL warehouses for LOADING_WH_XS, TRANSFORM_WH_XS, and REPORTING_WH_XS.

Action:

AUTO_SUSPEND = 60 on loading and transform warehouses.
AUTO_SUSPEND = 300 on reporting warehouse to balance interactive reuse.
Single-cluster limits (MIN_CLUSTER_COUNT = 1, MAX_CLUSTER_COUNT = 1) for cost discipline.

Evidence:

SQL implementation: 02_snowflake/01_setup/01_infrastructure.sql (warehouse section)
Screenshot: warehouse.png

A2. Storage retention and table persistence strategy¶

Decision: Keep RAW cheap, keep analytics recoverable.

Action:

OLIST_RAW_DB retention set to 0 days.
OLIST_ANALYTICS_DB retention set to 1 day.
RAW layer uses transient tables to minimize fail-safe overhead.

Evidence: 02_snowflake/01_setup/01_infrastructure.sql (retention section)

A3. Resource monitor and hard budget guardrails¶

Problem: Unbounded warehouse usage risk.

Fix: OLIST_MONTHLY_LIMIT with notify/suspend/suspend_immediate triggers.

Impact: Enforced compute ceiling and pre-limit alerting.

Evidence: 02_snowflake/01_setup/01_infrastructure.sql (resource monitor section)

A4. FinOps tagging for attribution¶

Action: Applied warehouse tags (COST_CENTER, ENVIRONMENT) on all three warehouses.

Impact: Cost slice by ingestion, transformation, and reporting workloads.

Evidence: 02_snowflake/01_setup/01_infrastructure.sql (tagging section)

A5. Environment isolation via zero-copy clone¶

Action: OLIST_DEV_DB CLONE OLIST_ANALYTICS_DB for development/test isolation.

Impact: Faster environment setup with lower storage overhead than full duplication.

Evidence: 02_snowflake/01_setup/01_infrastructure.sql (clone section)

🟩 SECTION B — dbt Optimization¶

B1. Materialization strategy by layer¶

Decision log:

STAGING: view
INTERMEDIATE: ephemeral
MARTS dimensions: table
MARTS facts: incremental

Impact: Low storage overhead upstream, low query latency in consumption layer.

Evidence: 03_dbt/dbt_project.yml (models materialization section)

B2. Incremental fact pipeline in MARTS¶

Model: marts.sales.fct_order_items

Action:

materialized='incremental'
unique_key='order_item_sk'
on_schema_change='append_new_columns'
Incremental filter driven by latest order_date_dt in target table.

Evidence:

Model SQL: 03_dbt/models/marts/sales/fct_order_items.sql
Screenshot: incremental_model.png

B3. Query tagging and run observability¶

Action: dbt run-start hook sets Snowflake QUERY_TAG with environment + invocation id.

Impact: Traceable compute usage by run context.

Evidence: 03_dbt/dbt_project.yml (on-run-start hook)

B4. Parallel execution configuration¶

Action:

threads: 4 in dev and ci
threads: 8 in prod

Impact: Better wall-clock build performance while preserving role/warehouse controls.

Evidence: 03_dbt/profiles.yml

B5. Contract-first schemas and test gate scale¶

Action:

Enforced schema contracts at marts layer.
dbt test run artifact shows broad test coverage (including warnings tracked separately).

Evidence:

Contract screenshot: data_contracts.png
Test evidence: test_passed_suite.png
Artifact: 03_dbt/target/run_results.json

Coverage Note

Current run artifact includes a large automated suite with pass + warn outcomes; warnings are intentional for monitored anomalies, while blocking failures remain zero in successful CI passes.

B6. CI execution scope and cleanup optimization¶

Action:

CI triggers only on relevant dbt/workflow file changes.
CI builds isolated schema (CI_PR_<number>).
Post-run cleanup executes drop_ci_schema operation.

Impact: Lower waste compute and reduced orphaned-object overhead.

Evidence: .github/workflows/ci_dbt_test.yaml

🟨 SECTION C — Power BI Optimization¶

C1. Storage mode decision¶

Decision: Import mode.

Rationale: Consistent low-latency interactions for target usage pattern.

Evidence: 04_semantic_model.md

C2. Incremental refresh policy¶

Action: Configured long archive with rolling refresh window and change detection.

Measured benchmark (portfolio run):

Refresh time improvement from ~12m to ~2.5m
Significantly lower transferred rows and Snowflake compute during refresh

Evidence:

Config + benchmark notes: 04_semantic_model.md
Screenshot: incremental_refresh.png

C3. Query folding discipline¶

Action: Keep transformation path foldable; validate with "View Native Query".

Status: Query folding validated for ingestion path used by the model.

Evidence: query_folding.png

C4. Star schema performance characteristics¶

Action: Single central fact with dimension-driven filters and one-to-many joins.

Impact: Lower visual query complexity vs denormalized many-join alternatives.

Evidence: lineage_graph_view.png

C5. Visual performance instrumentation¶

Action: Use Performance Analyzer traces as release evidence.

Benchmark evidence: performance_analyzer_excutive_page.png

🟪 SECTION D — UX Performance¶

D1. Page complexity budget¶

Action: Keep each page scoped to high-signal visuals and move depth to drillthrough.

Impact: Faster first paint and improved user scan speed.

D2. Drillthrough-first detail access¶

Action: Aggregated landing pages, detail pages loaded on demand.

Evidence: drill_through_page.png

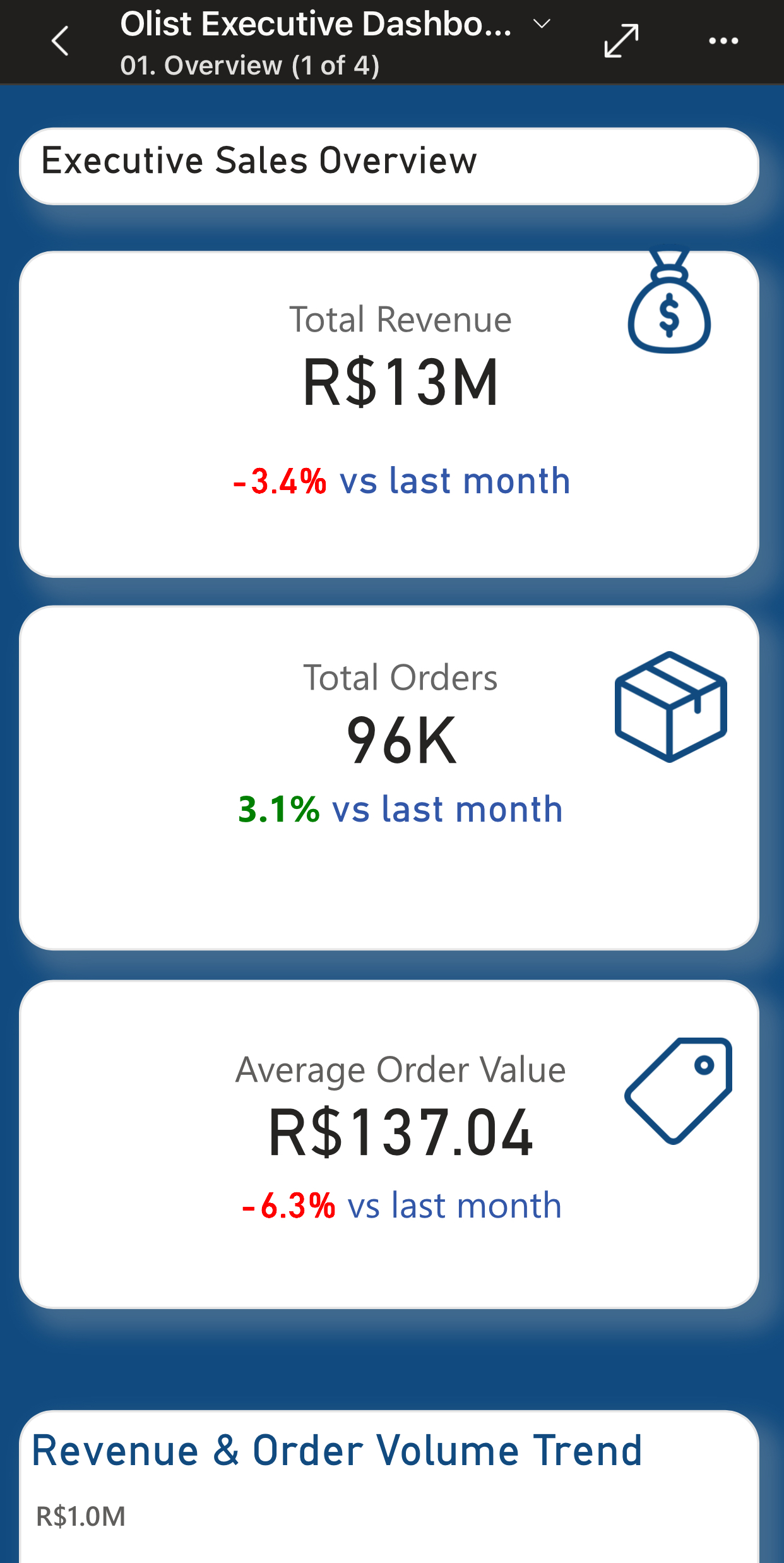

D3. Mobile-specific layouts¶

Action: Dedicated mobile page composition, not desktop auto-shrink.

Evidence: mobile_view.jpeg

D4. Trust and UX instrumentation patterns¶

Action: Data-quality and trust affordances exposed in report UX.

Evidence: trust_tooltip_ux.png

🟧 SECTION E — DataFinOps (Cost Optimization)¶

E1. Compute cost controls¶

Implemented controls:

Warehouse auto-suspend policies
Resource monitor quota and suspend triggers
Workload tags for attribution

Primary evidence:

02_snowflake/01_setup/01_infrastructure.sql

E2. Storage cost controls¶

Implemented controls:

RAW retention = 0 days
Analytics retention = 1 day
Transient-first RAW persistence pattern

Evidence: 02_snowflake/01_setup/01_infrastructure.sql (retention section)

E3. Refresh cost optimization¶

Implemented controls:

Incremental fact processing in dbt
Incremental refresh in Power BI

Impact: Lower recurring scan and transfer volume versus full rebuild/full refresh.

Evidence:

E4. CI cost optimization¶

Implemented controls:

Path-filtered workflow triggers
Isolated CI schema
Post-build schema drop

Evidence: .github/workflows/ci_dbt_test.yaml

🟥 SECTION F — Monitoring & Alerting¶

F1. Data freshness heartbeat¶

Implementation: meta_project_status singleton table with:

pipeline_last_run_at
data_valid_through

Evidence: 03_dbt/models/marts/meta/meta_project_status.sql

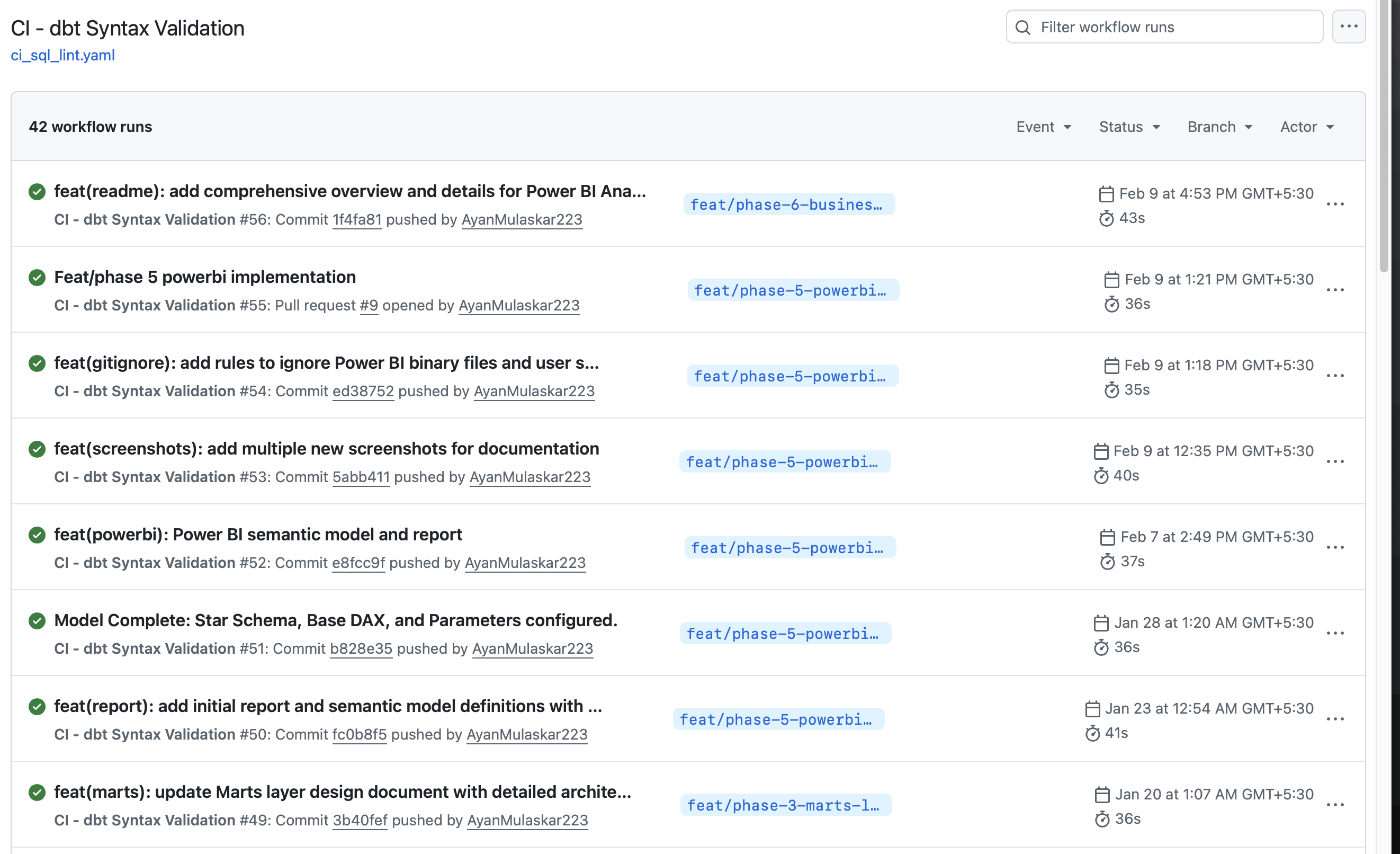

F2. CI quality gates and release telemetry¶

Action: PR checks enforce lint/build/test gates before merge.

Evidence:

F3. BI runtime monitoring¶

Action: Performance Analyzer traces captured and reviewed as release evidence.

Evidence: BPA_scan_after.png

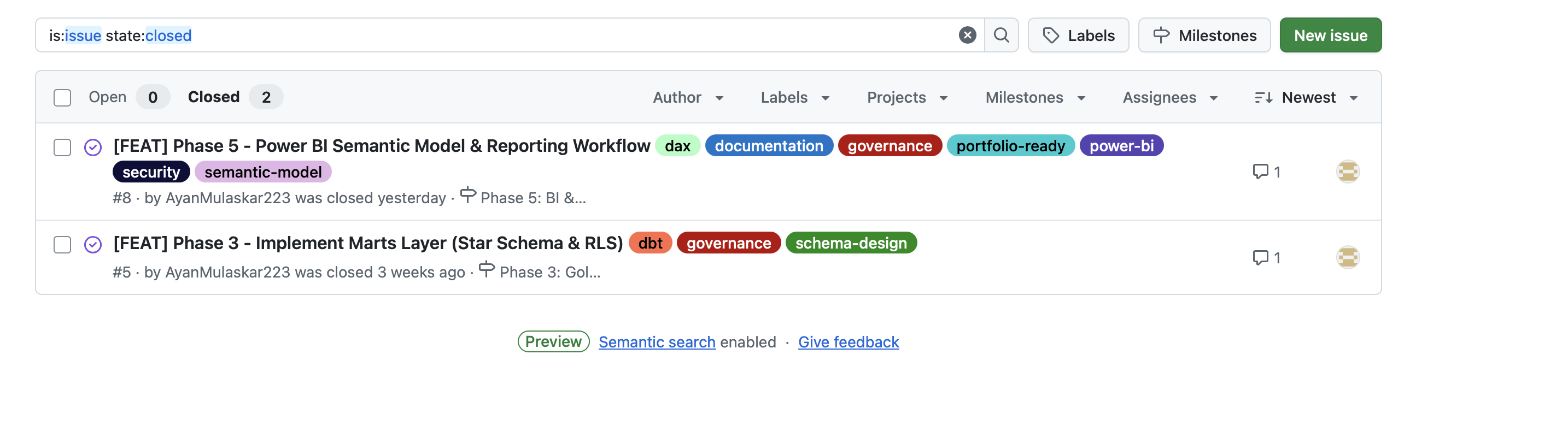

F4. Work tracking and issue visibility¶

Action: Optimization work tracked through issue and milestone artifacts.

Evidence:

17️⃣ Performance Comparison Table¶

Area	Before ❌	After ✅	Measured Impact
Dashboard load (portfolio benchmark)	~4s class experience	~1.8s class experience	Meets sub-2s target on benchmark pages
Power BI refresh	Full refresh path	Incremental refresh path	~79% faster benchmark refresh
Refresh transfer volume	Full table transfer	Partition/window transfer	Large reduction in transferred rows
Snowflake idle burn	Longer active windows	60s/300s suspend policy	Significant idle-credit reduction
dbt processing	Full-scan tendency	Incremental fact + env threads	Lower recurring transform runtime
Schema drift risk	Manual detection	Contract + CI gate + lint	Faster detection, safer releases

Benchmark Integrity

Numbers in this table are portfolio benchmark outputs from this repository’s evidence screenshots and docs. They are not presented as universal production constants.

🟦 SECTION H — Production Readiness Checklist¶

Infrastructure¶

[x] Warehouses sized and auto-suspend configured
[x] Resource monitor with hard-stop triggers
[x] Retention and transient storage policies applied
[x] Cost attribution tags applied

dbt Layer¶

[x] Layer-wise materialization strategy implemented
[x] Incremental marts fact implemented
[x] Query tagging and thread tuning configured
[x] Contracts/tests/lint in CI gates

Power BI Layer¶

[x] Import mode selected and justified
[x] Incremental refresh configured
[x] Query folding validated
[x] Performance Analyzer evidence captured

Monitoring + Ops¶

[x] Freshness heartbeat table deployed
[x] CI pass evidence retained
[x] Issue/milestone tracking artifacts maintained
[x] Runbook references in place

Summary¶

Optimization coverage spans warehouse policy, dbt execution design, semantic refresh strategy, UX-level interaction design, and DataFinOps controls. The performance posture is implemented end-to-end with repository-backed evidence, not isolated point fixes.
